Overview

OEM replacement blower motors designed for standard furnace and air handler applications. Available in PSC and ECM configurations — from simple single-speed airflow to variable-speed, energy-efficient operation.

See Product Literature

Benefits

  • Drop-in compatibility —NEMA 48 frame supports standard blower housing applications
  • Flexible speed options — PSC and ECM cover the full range of residential system needs
  • Reversible rotation — CW/CCW reduces SKU count and simplifies inventory
  • Built-in protection —thermal and electronic safeguards (model dependent) reduce service risk
  • Simplified replacement — direct drive, horizontal mount means faster installs

    Features

    • PSC Motor Design — Permanent Split Capacitor for OEM blower applications

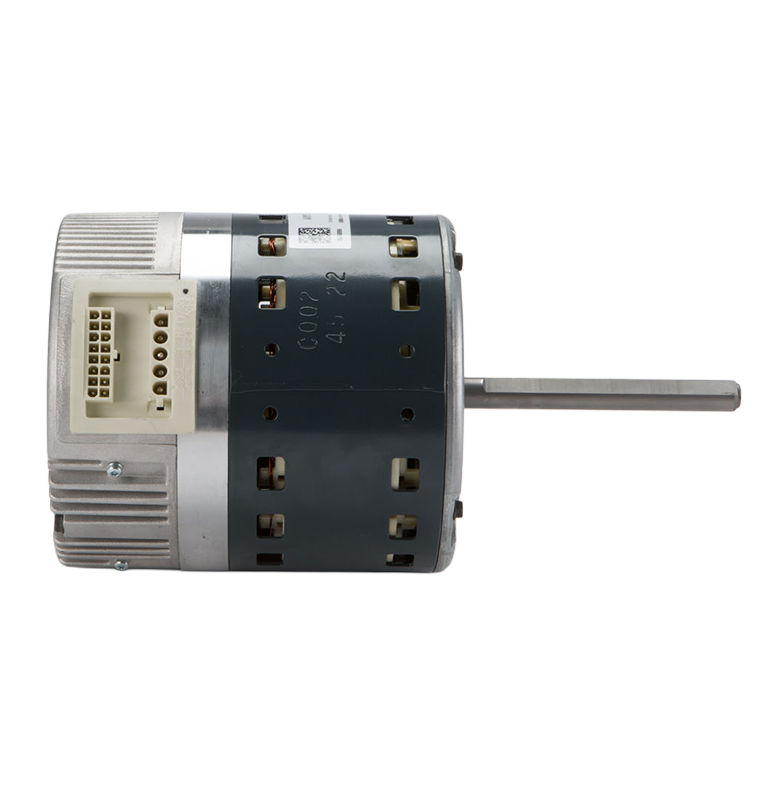

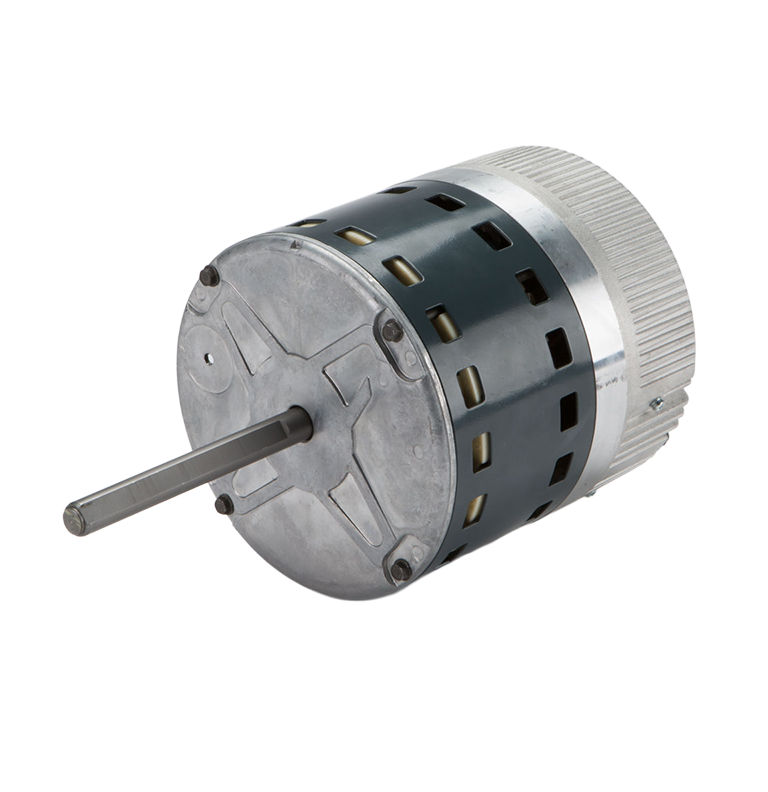

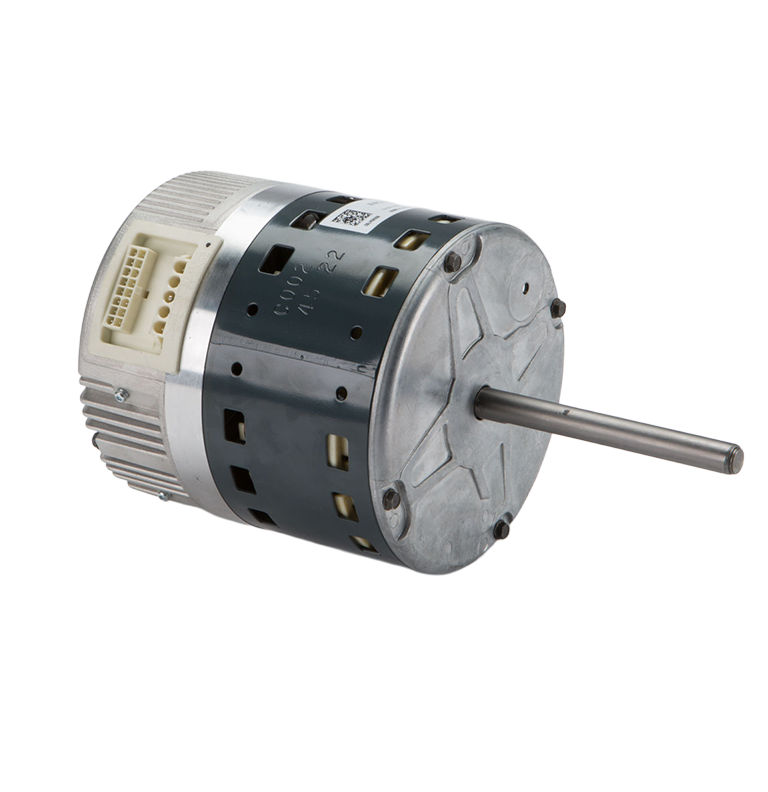

    • ECM Motor Design — Integrated electronic speed control for variable airflow
    • NEMA 48 Frame — Standard size for furnace & air handler compatibility
    • Direct Drive — Couples directly to blower wheels for simple replacement
    • Continuous-DutyRated — Suitable for normal HVAC operatingcycles
    • Thermal Overload Protection — Protects motor from overheating

    Literature

    Specifications

    PSC Blower Motors ECM Blower Motors
    Motor Type Electronically Commutated Permanent Split Capacitor
    HP Range 1/8 HP – 3/4 HP 1/3 HP – 1 HP
    Speed Options 2-speed & 3-speed Variable / Constant-torque
    Frame Size NEMA 48 NEMA 48
    Voltage 115V, 120V, 208/240V 120V, 208/240V
    Frequency / Phase 60 Hz, Single Phase 60 Hz, Single Phase
    RPM Range 825 – 1750 RPM 1050 RPM
    (variable / electronically controlled)
    Mounting Horizontal Horizontal
